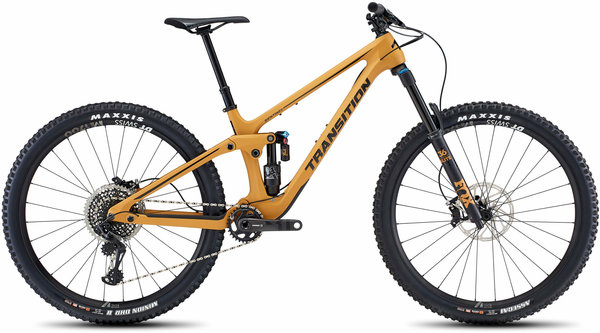

Transition Sentinel X01

Transition Sentinel X01
Please select options Unavailable


The Transition Sentinel inspires confidence like you’re wearing full body armor.

It’s forgiving do-it-all attitude truly blurs the lines between planted bottomless sender and playful poppy trail pony. Whether you’re chasing EWS dreams or just a weekend afternoon escape, it will bring out the best in you. So easy to get acquainted with you’ll find yourself sending lines, jumps and maneuvers you always felt were beyond your ability. Where before you went around, now you go over. Where you pushed up, now you pedal. Where you rolled, now you boost.

We wanted to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively whether you're setup correctly or not. Because, we get it, sometimes life gets in the way, and you've got to grab your bike and GiddyUp without checking your setup. When you do, it will still feel good.

We did this by balancing a 24% progressive leverage curve with a consistent linear rate of change. Anti-squat is tuned to enhance pedaling performance and acceleration. Overall chain growth is moderate and reduces after sag so chain tension doesn't get in the way of the suspension working.

This translates to killer small bump compliance and great mid-stroke support that gradually transitions into an end of stroke ramp that is subtle, yet supportive. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suite their individual riding style and there is no compromise to bottom out support with coil shocks. The Sentinel has 150mm of rear wheel travel when used with the supplied 205mm x 62.5mm stroke shock. It is also possible to install a shorter, 205mm x 57.5mm stroke shock, to decrease the rear wheel travel to 140mm.

A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from poppy and playful, to planted for plowing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.


Frame Sentinel Carbon 150mm
Fork Fox Float 36 Grip 2 Performance Elite 160mm Travel/44mm Offset
Headset Cane Creek 40 Series
Rear Shock Fox Float X2 Performance Elite
Wheels DT Swiss M1700 Spline 30
Tires TIRE/FRONT Maxxis Assegai 3C EXO+ (29.5x2.5) TIRE/REAR Maxxis Minion DHRII 3C EXO+ (29.5x2.4)
Crankset SRAM X1 Carbon DUB (30t/170mm)
Chain SRAM GX Eagle
Rear Derailleur SRAM XO1 Eagle
Cassette SRAM XG 1295 (10-50t)
Shifters SRAM XO1 Eagle
Handlebars OneUp Carbon Bar SM/MD (800x20) LG/XL/XXL (800x35)
Tape/Grips Sensus Lite
Stem ANVL Swage (40mm)
Brakes SRAM Code RSC
Saddle ANVL Forge Ti
Seat Post OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm)
Color(s) TI Grey, Loam Gold

* Subject to change without notice.


Sentinel Tech Video

Part Numbers

Option Store SKU
Ti Grey / Small 210000023894
Ti Grey / Medium 210000023896
Ti Grey / Large 210000023898
Ti Grey / X-Large 210000023900
Ti Grey / XX-Large 210000023902
Loam Gold / Small 210000023893
Loam Gold / Medium 210000023895
Loam Gold / Large 210000023897
Loam Gold / X-Large 210000023899
Loam Gold / XX-Large 210000023901
