In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.

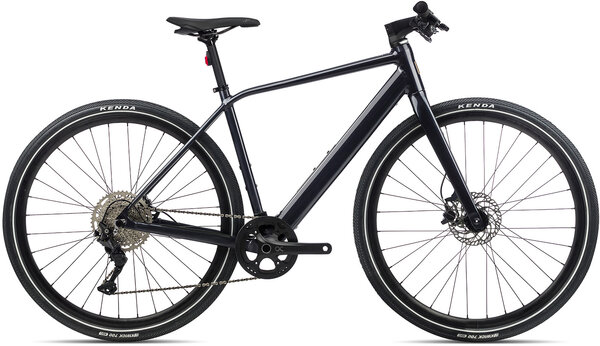

Vibe is a bike that is lightweight and enjoyable to ride - with a motor, battery, and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.
It's like magic - Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high beam light Vibe is ready for the road.
Vibe's control center is an attractive and discreet handlebar-mounted switch, putting function at your fingertips without removing your hands from the bar.
- ON, OFF AND LIGHT CONTROL
- BATTERY & ASSIST LEVEL
- INFORMATION BY RBG LED
- SMART & COMPACT
The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Vibe's Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.
Vibe's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.
- 40 PULSES PER SECOND
- MAGNETIZED LOCK RING SENSOR
- PROPRIETARY ALGORITHM & ELECTRONICS
Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.
|1 - SEAT TUBE (C-T) (mm)||455||490||530||575|
|2 - TOP TUBE (EFF) (mm)||507||530||547||571|
|3 - HEAD TUBE (mm)||109||144||175||210|
|4 - CHAINSTAY (mm)||435||435||435||435|
|5 - BB HEIGHT (mm)||280||280||280||280|
|6 - BB DROP (mm)||76||76||76||76|
|7 - WHEELBASE (mm)||1008||1035||1065||1091|
|8 - HEAD ANGLE||71º||71.5º||71.5º||72º|
|9 - SEAT ANGLE||75º||74.5º||74º||74º|
|10 - STANDOVER (mm)||775||809||842||881|
|11 - REACH (mm)||370||390||410||430|
|12 - STACK (mm)||550||585||615||650|
|13 - FORK LENGTH (mm)||410||410||410||410|
|WHEEL SIZE (mm)||712||712||712||712|
|HEIGHT ( CM )||HEIGHT ( IN )||SIZE|
Due to supply-chain issues, Specs are subject to change without notice.
|Frame||Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible|
|Fork||Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.|
|Axles||Orbea Thru Axle 12x100mm M12x2 P1 Hollow|
|Tires||Kenda K1052 700x45C Reflective type+puncture protection|
|Crankset||OC 42t, w/Chainguard|
|Shifters||Shimano Deore M4100|
|Rear Derailleur||Shimano Deore M5120 SGS Shadow Plus|
|Brakes||Magura MT30 Hydraulic Disc Easy Route Connection|
|Handlebars||Alloy 31.8mm 12mm Rise 700mm|
|Stem||OC1 31.8mm interface -6º|
|Headset||Acros Alloy 1-1/2" Internal Cable Routing|
|Seatpost||OC 27.2 Offset 0, for integrated light|
|Saddle||Selle Royal Lift 1215 URN 278x145mm|
|Accessories & Extras||FRONT POSITION LIGHT: Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50, REAR LIGHT: Lezyne FENDER STVZO seatpost mounting 11 lumens, BELL: Knog OI Classic|
|Motor||Ebikemotion X35 Plus 20mph|
|Battery||Ebikemotion 36V/6.9A 248Wh ANT+|
* Subject to change without notice.
|Metallic Dark Red / Small||08434446963506||M60646YH|
|Metallic Dark Red / Medium||08434446963544||M60649YH|
|Metallic Dark Red / Large||08434446963582||M60653YH|
|Metallic Dark Red / X-Large||08434446963629||M60658YH|
|Blue / Small||08434446963490||M60646YG|
|Blue / Medium||08434446963537||M60649YG|
|Blue / Large||08434446963575||M60653YG||210000030473|
|Blue / X-Large||08434446963612||M60658YG|
|Night Black / Small||08434446963483||M60646YF|
|Night Black / Medium||08434446963520||M60649YF||210000030474|
|Night Black / Large||08434446963568||M60653YF|
|Night Black / X-Large||08434446963605||M60658YF|
|Urban Green / Small||08434446963513||M60646YI|
|Urban Green / Medium||08434446963551||M60649YI||210000030472|
|Urban Green / Large||08434446963599||M60653YI|
|Urban Green / X-Large||08434446963636||M60658YI|
