Details

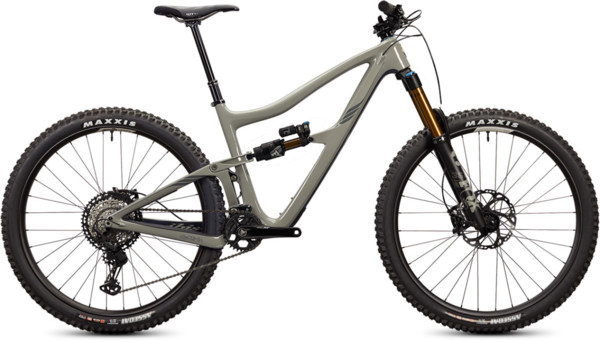

What if we took everybody's favorite bike and made it a little slacker and little longer? Hell, what if we made it more progressive and coil compatible? And, that's exactly what we did for the Ripmo V2. Active ingredients include: 29" wheels, berm-defying cornering tendencies, and a love for long rides.
The Ripmo and Ripmo AF share the same steep, 76-degree seat tube angle and a rangy but not stratospheric reach, which places riders centrally over the pedals. It makes for an efficient position that can go the long haul. The slack 64.9 headtube angle and 44mm reduced-off set fork doesn't wander while climbing, and doesn't hold you back descending. It works—all day up, all day down, all day in between.
TRACTION TUNE
Our custom-tuned front and rear suspension feature extra-light high-speed compression and rebound damping to deliver unparalleled traction. This allows the wheels to flutter through terrain like a trophy truck storming through a set of whoops.
COIL COMPATIBLE
The Ripmo V2 is compatible with both coil and air shocks due to a more progressive leverage rate. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.
DROPPER POST CLEARANCE
Mo' dropper, mo' better. On small frames, you can run 125 – 150mm, depending on your preference and inseam length. On Medium, Large, and X-Large, a 160mm—or, why not run a 185mm? Our shorter seat-tube lengths and low standovers allow you to choose your size based on your reach preference.
TIRE CLEARANCE
You can run overbuilt, chunky tires; you can run light, big volume fast tires, but whatever you run, know that you're not limited by width.
BUSHINGS
Tired of hitting "purchase" on another set of bearings each season? So were we. That's why we use bushings where they make sense, and bearings where they don't. The IGUS bushings in our lower link are lighter, stiffer, and virtually maintenance-free. We believe so strongly in them, we back them with a free lifetime replacement.
LIGHTWEIGHT PREMIUM CARBON FOR EVERYONE
All our bikes are built from the highest-grade materials and optimized for the best strength, weight, stiffness, and ride performance-no matter how much you spend. The Ripmo weighs a svelte 6.25 lbs with a DPX2 shock, and complete builds start at 28 lbs.
INTERNAL CABLE ROUTING
Bikes that look pretty on the outside should look pretty on the inside. We use carbon fiber tubes molded within each frame. Push the cable in, watch it pop out, a beautiful moment indeed.
REMOVABLE ISCG MOUNT
So, you're too fast for narrow-wide chain retention on its own? Challenge accepted. Our removable ISCG tabs allow shredders to bolt on a chain guide, while the rest of us can shave grams.
PROTECT YOUR INVESTMENT
A polycarbonate downtube protector deflects debris, while molded rubber swing arm protectors keep things quiet and clean. And, our simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.
Small | Medium | Large | X-Large | |
---|---|---|---|---|
A. Reach | 433mm | 460mm | 475mm | 500mm |
B. Stack | 609mm | 619mm | 628mm | 640mm |
C. Standover | 703mm | 733mm | 740mm | 752mm |
D. Effective Top Tube | 573mm | 603mm | 632mm | 655mm |
E. Head Tube Angle | 64.9° | 64.9° | 64.9° | 64.9° |
F. Head Tube Length | 90mm | 100mm | 110mm | 120mm |
G. Seat Tube Angle | 77° | 77° | 76° | 76° |
H. Seat Tube Length | 368mm | 406mm | 432mm | 483mm |
I. Bottom Bracket Height | 341mm | 341mm | 341mm | 341mm |
J. Bottom Bracket Drop | 30mm | 30mm | 30mm | 30mm |
K. Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm |
L. Trail | 125mm | 125mm | 125mm | 125mm |
M. Wheelbase | 1187mm | 1219mm | 1238mm | 1267mm |
O. Chainstay Length | 435mm | 435mm | 435mm | 435mm |
Small | 152–165CM |
---|---|
Medium | 163–175CM |
Large | 173–185CM |
X-Large | 183–198CM |
Specs
Frame | Ripmo |
---|---|
Fork | Fox Float 38 Factory Series 160mm, 29", 110x15 |
Rear Shock | Select from the dropdown above |
Wheels | Select from the dropdown above |
Tires | Maxxis Assegai 29 x 2.5" WT, EXO+ casing, 120tpi |
Bottom Bracket | Shimano XT MT800 |
Crankset | Shimano XT M8100, 30t Alloy Ring, S/M: 170mm, L/XL: 175mm |
Shifters | Shimano XT M8100, 12 speed |
Rear Derailleur | Shimano XT M8100 Shadow Plus, 12 speed |
Cassette/Freewheel | Shimano XT 10-51t |
Chain | Shimano XT M8100, 12 speed |
Brakes | Shimano XT M8120, 4 piston |
Rotors | Shimano SM-RT86, 200/180mm |
Handlebars | Ibis 800mm Hi Fi Bar |
Tape/Grips | Lizard Skin Charger |
Stem | Industry Nine A318, S/M: 40mm, L/XL: 50mm |
Headset | Cane Creek 40 ZS44/ZS56 |
Seatpost | Bike Yoke Revive Dropper, S: 125mm, M: 160mm, L/XL: 185mm. Note there is a 250lb rider weight limit on this post. |
Saddle | WTB Silverado 142 |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | Store SKU |
---|---|
Star Destroyer Grey / X-Large / Ibis S35 Aluminum | 210000023680 |
