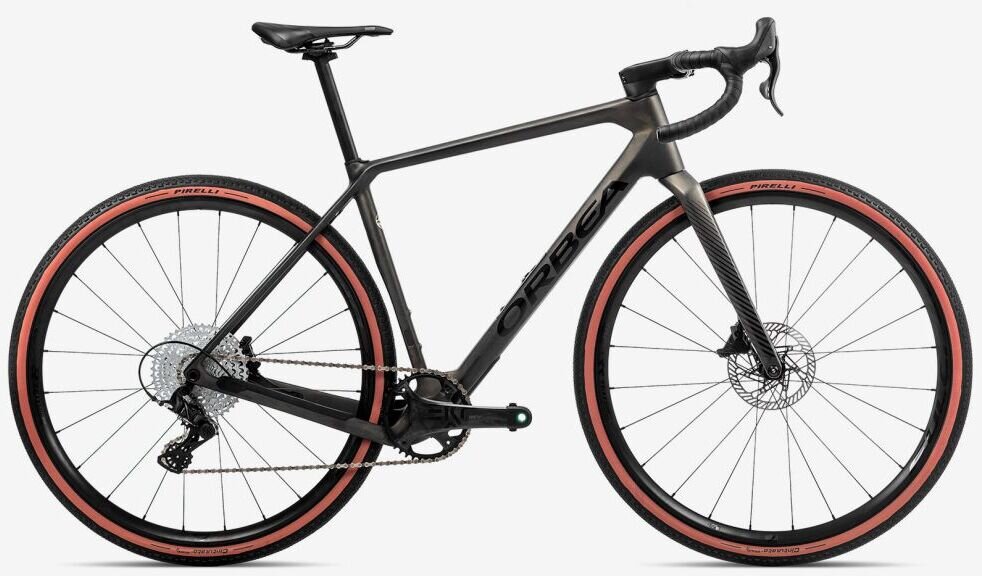

Orbea Terra M22Team 1X

Orbea Terra M22Team 1X
Color: Infinity Green
Size: Select size
Please select options Unavailable



Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
Our Terra M is the sportiest option within the family, fast and light for those back roads or gravel path adventures.
The carbon frame offers the perfect blend of weight, comfort and strength while our LOCKR system takes care of storing those essentials.
Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.


Frame Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box.
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Headset FSA 1-1/2" Integrated Aluminium Cup
Rims FULCRUM Rapid Red 500 DB
Tires Pirelli Cinturato™ Gravel H 700x40c TLR
Crankset Campagnolo Ekar 40t
Chain Campagnolo Ekar C-link
Rear Cog(s) Campagnolo Ekar 10-44 13-Speed
Handlebars Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Stem OC Road Performance RP10, -8º
Shifters Campagnolo Ekar Ergopower
Rear Derailleur Campagnolo Ekar
Brakes Campagnolo Ekar
Saddle Prologo Akero AGX STN size 155mm
Seat Post OC Performance XP10 Carbon, 27.2mm, Setback 0

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Infinity Green / X-Small M11501AI
Infinity Green / Small M11503AI 210000027045
Infinity Green / Medium M11505AI 210000027046
Infinity Green / Large M11507AI
Infinity Green / X-Large M11509AI
Infinity Green / XX-Large M11511AI
