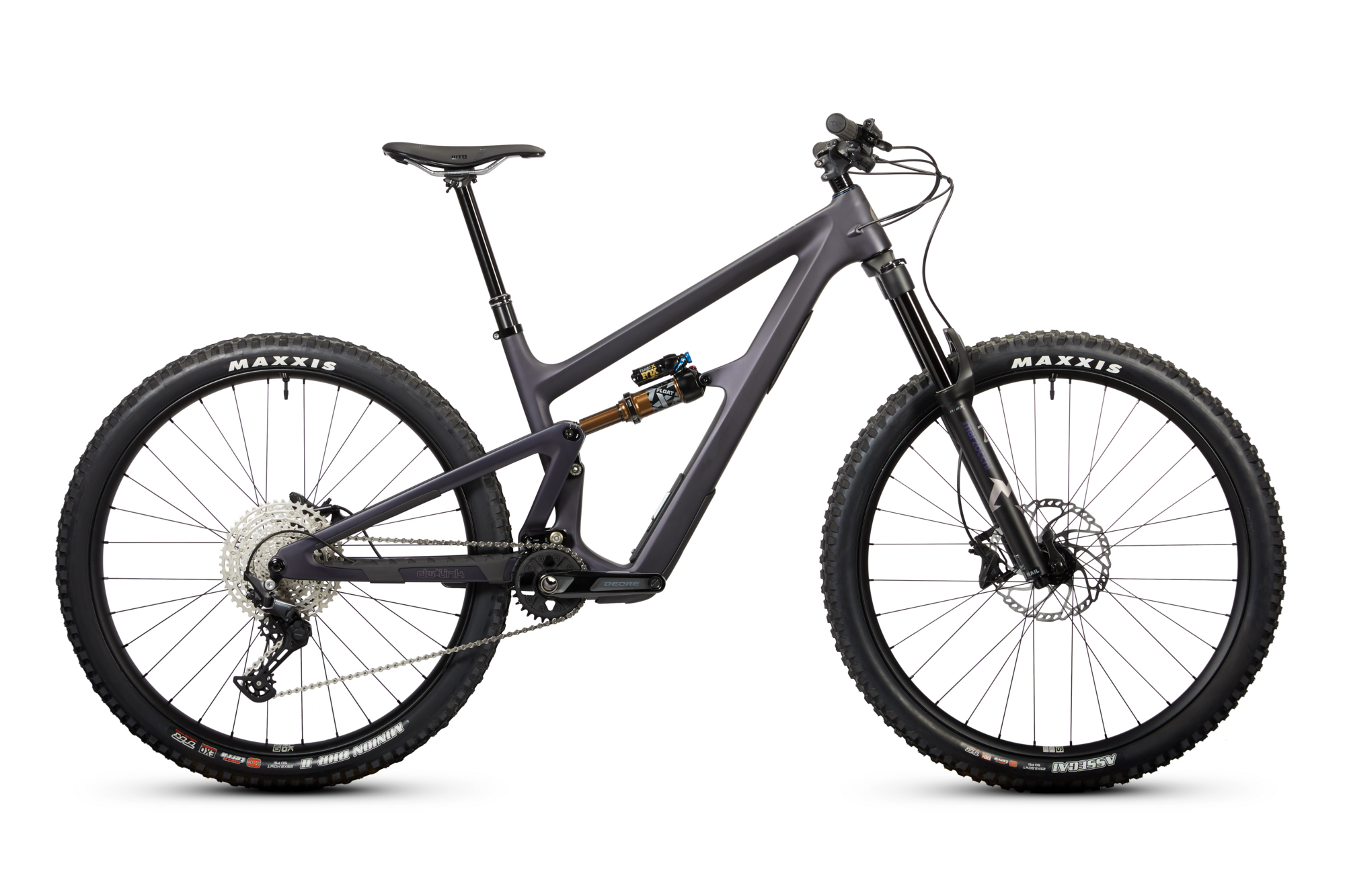

Ibis Ripmo V3 XT

Ibis Ripmo V3 XT
Please select options Unavailable

Details

The Ripmo isn't just a bike; it's a legend.

With multiple "Best in Test" awards and years of high level competition at the notoriously brutal Enduro World Series, it’s the ultimate trail-slaying machine. How do you improve on that?

The Ripmo is loaded with new features: internal downtube storage, a flip chip for mixed wheels, a slacker head angle, and increased coil compatibility. We've also expanded our sizing options and added size-specific details—right down to the bottom bracket height.

Wheel size:
Sizes Small – Medium: 29-inch front / 27.5-inch rear
Sizes Medium/Large – X-Large: 29-inch

*Specs may vary from image displayed*

Sizes:
Frame SizeSmallMediumExtra MediumLargeX-Large
Seat Tube (mm)395 400415457477
Top Tube (mm)578 605630655685
Head Tube (mm)85 95110125140
Chainstay (mm)435 435436438440
Seat Tube Angle77° 76.5°76.5°77°77.5°
Saddle Height For Seat Tube Angle (mm)650 700745790830
Head Tube Angle64.5° 64.5°64.5°64.5°64.5°
Wheelbase (mm)1195 1219124912861329
Stack (mm)616 622633643654
Reach (mm)436 456478506540
BB Drop (mm)36 33302724
BB Height (mm)338 341344349350
Standover (mm)693 734757772784
Recommended Seatpost Drop (mm)140 170185213213
Crank Length (mm)165 165170170170

Specs

Pedals Sold Separately
Fork Fox Float 36 Factory Series Grip X 160mm, 29”, 110x15
Hubs Front Hub Ibis Logo Front Hub, 110x15, 32 Hole
Rear Hub Ibis Logo Rear Hub, 148x12, 32 Hole
Rims Ibis Send Alloy, 32 hole, 29" XM -> XL, Ibis Send Alloy, 32 hole, 27.5" S & M
Stem Ibis 31.8mm
Chain Shimano XT M8100
Frame Ripmo V3
Tires Front Tire: Maxxis DHF2, 29”x 2.5”, Exo+
Rear Tire: Maxxis DHR, 27.5” x 2.5”
Brakes Shimano XT M8120 4p
Rotors Shimano SM-RT86 180
Saddle WTB Silverado Fusion 142
Spokes Sapim Dlight Double Butted
Wheels Send I 29 Alloy Front Wheel 110, Send II 29 Alloy Rear Wheel 148 MS
Headset Cane Creek 40: ZS44/ZS56
Crankset Shimano XT M8100 24mm spindle, 30t Alloy Ring
Seatpost Bike Yoke Revive Dropper
Shifters Shimano XT M8100
Chainrings 30t Alloy Ring
Handlebars Ibis 35mm 800mm Hi Fi Bar
Rear Shock Fox Float X Factory Series, 2 Pos Adj with EVOL, 230 x 60
Tape/Grips Lizard Skin Charger
Brake Levers Shimano XT M8120
Bottom Bracket Shimano XT MT800
Rear Derailleur Shimano XT M8100 Shadow Plus
Accessories & Extras Cotopaxi Stow Bags
Cassette/Freewheel Shimano XT 10-51

* Subject to change without notice.
